Fiberglass Fuse Cutout & Arrestor Bracket
FUSE
CUTOUT & ARRESTOR BRACKET
DOUBLE
STANDOFF BRACKET
SPECIFICATIONS:
Rod:
Fiberglass with Ultraviolet Protective Coating, Colour: Munsel Gray
Base and End Fittings: High Strength Cast Aluminum Alloy
|
CATALOGUE |

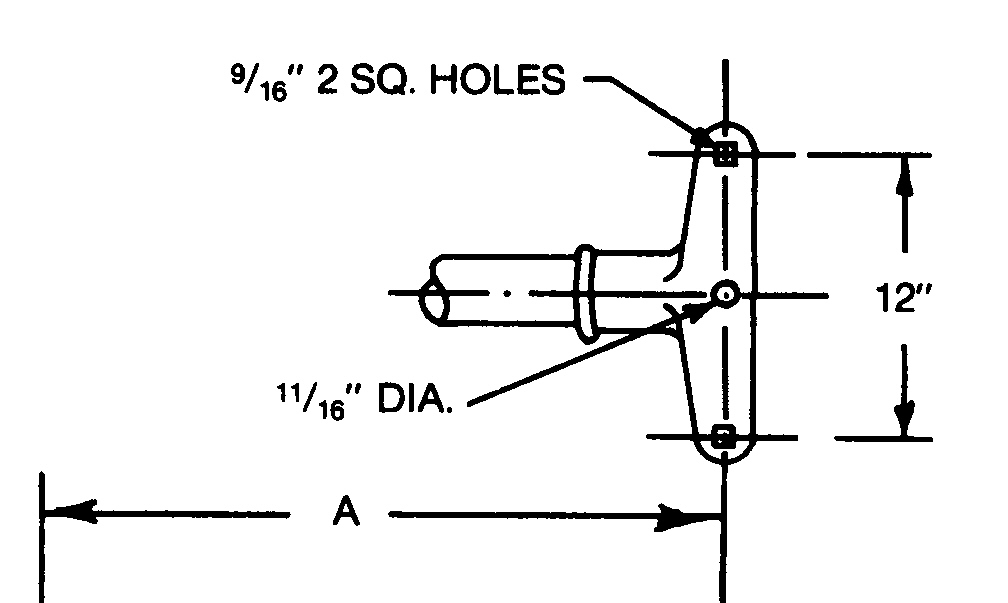

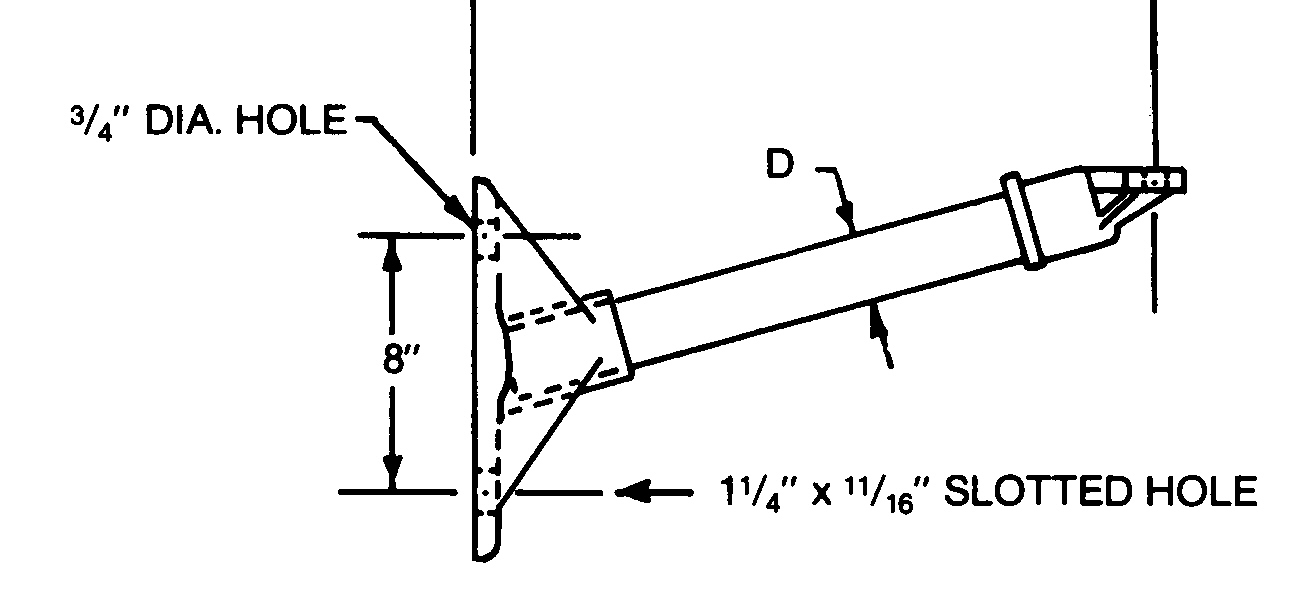

DIMENSIONS
IN INCHES |
MINIMUM
ULTIMATE LOAD |
|
|
NUMBER |
A |
D |
POUNDS |
|
FCBD-12 |
12 |
1
1/2 |
1800 |
|
FCBD-15 |
15 |
1
1/2 |
1500 |
|
FCBD-18 |
18 |
1
1/2 |
1200 |
|
FCBD-22 |
22 |
1
1/2 |
900 |
