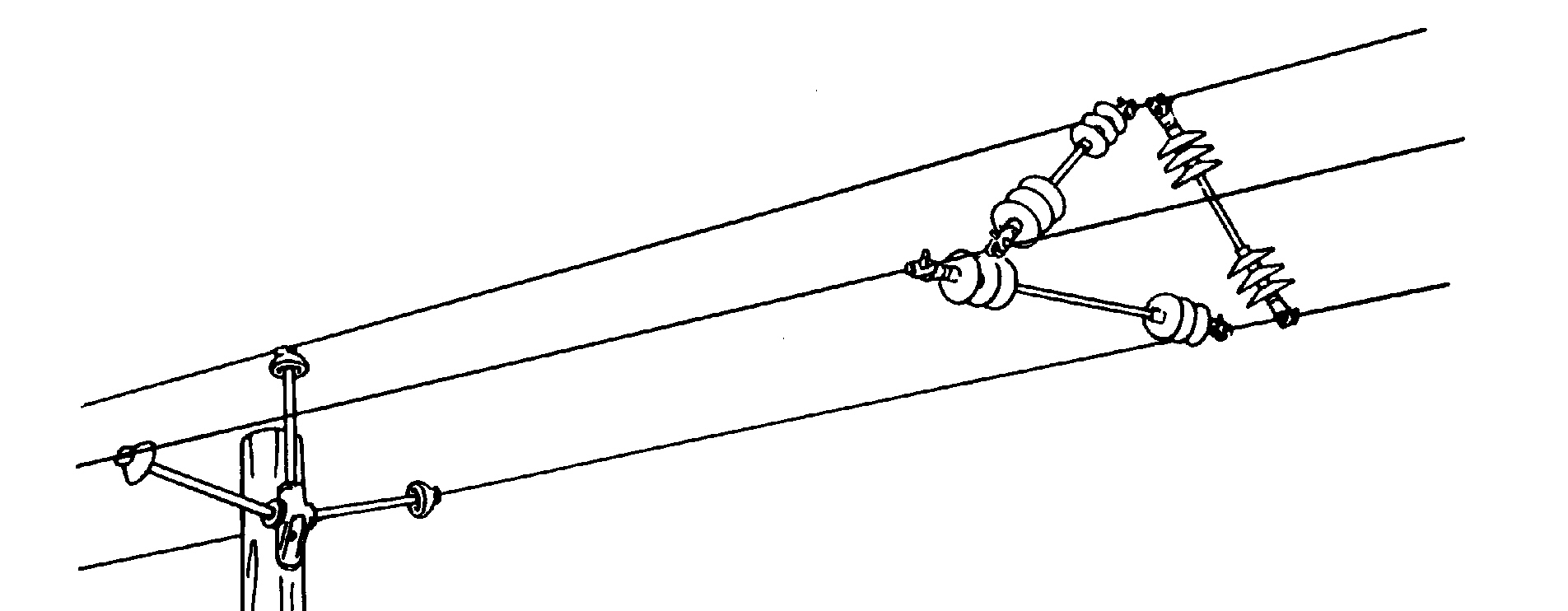

Polyline™ Phase Conductor Spacing Insulator
SPECIFICATIONS:
Weathershed
Material: EPDM Rubber Compound
Fittings:
High Strength Aluminum Alloy
Rod:
Fiberglass with Ultraviolet Protective Coating
Mounting
Bracket and Hardware: Steel Galvanized
Conductor Range: 4 Sol. - 556.ACSR (.200"-.858")
|

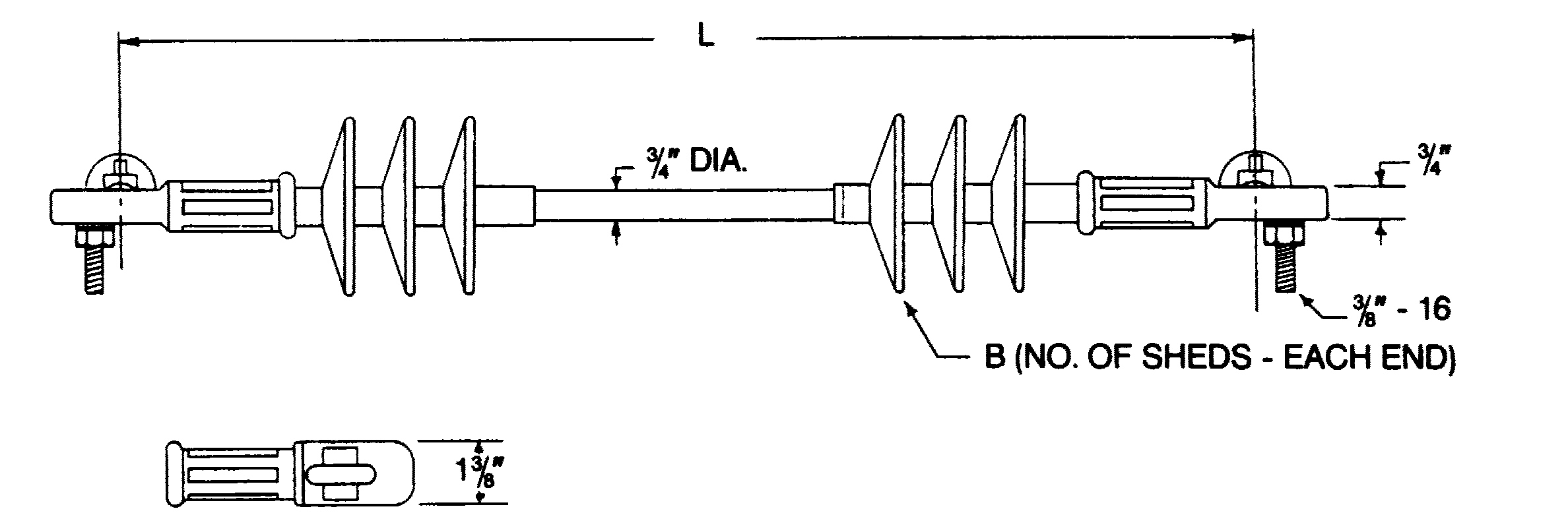

CATALOGUE
NUMBER |
L |
|
EHCS-KV*-48 |
48" |
|
EHCS-KV*-60 |
60" |
|
KV
CHART |
|
|
KV* |
B-SHEDS
(EACH END) |
|
15 |
2
+ 2 |
|
35 |
3
+ 3 |
|
46 |
5
+ 5 |
|
69 |
6
+ 6 |
NOTE:
KV* In
Catalogue number must be specified
Other lengths available upon request.
