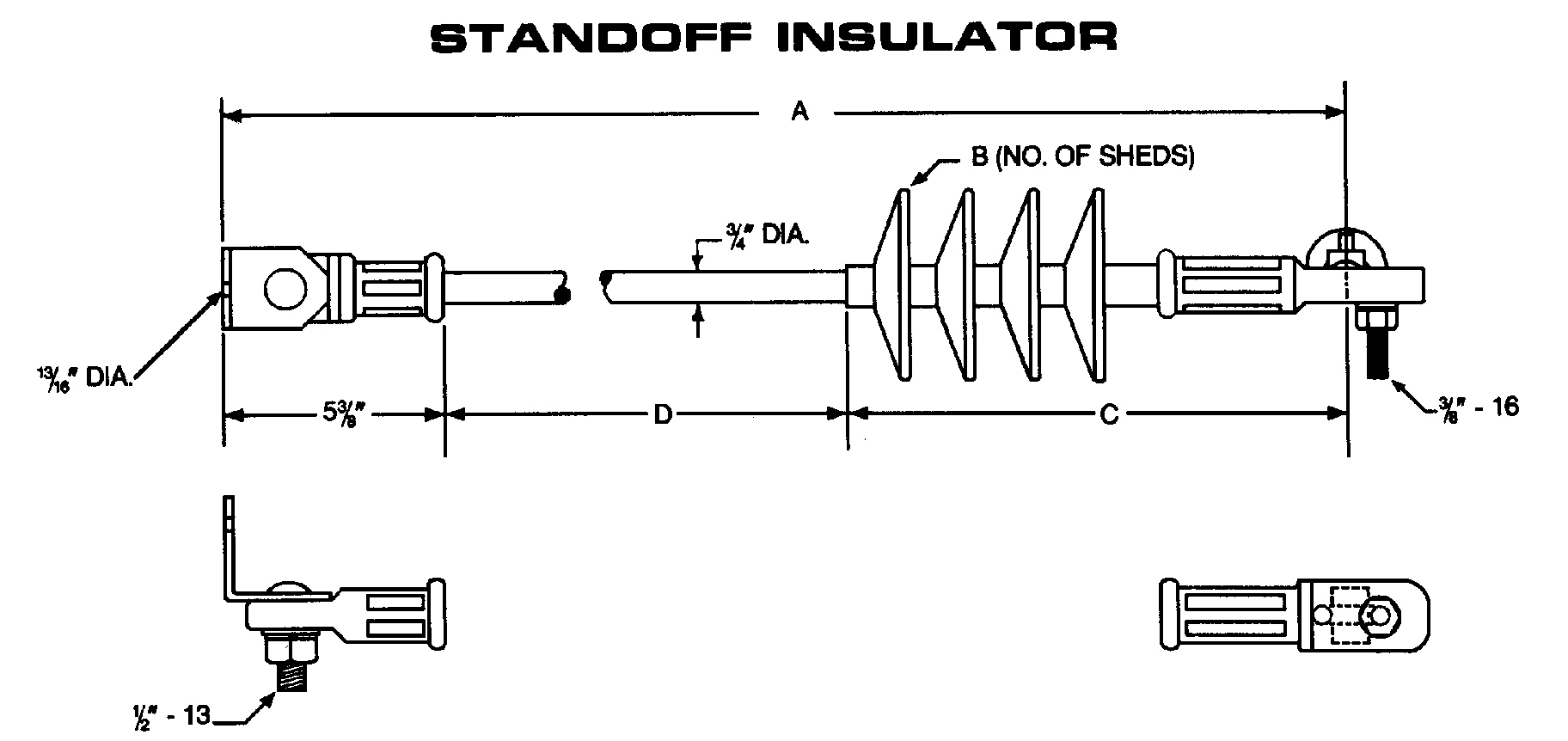

Standoff Insulator (Riser Support Insulator)
SPECIFICATIONS:
Weathershed Material: EPDM Rubber
Fittings:
High Strength Aluminum Alloy, Available with 5/8-11 or 3/4-10 Thread
Mounts
Rod:
Pultruded Fiberglass
Hardware:
Steel Galvanized
Conductor Range: 4 SOL-667 ACSR (.200"-1.00")
|
CATALOGUE
NUMBER |
VOLTAGE
CLASS |
A |
B
OVERALL LENGTH |
C
NUMBER O SHEDS |
|
ERSO-15-3 |
15KV |
14
1/2" |
16" |
3 |
|
ERSO-28-5 |
28KV |
17
5/8" |
19
1/8" |
5 |
|
ERSO-35-6 |
35KV |
19" |
20
1/2" |
6 |
|
ERSO-46-9 |
46KV |
23
3/4” |
25
1/4" |
9 |
|
ERSO-69-12 |
69KV |
28" |
29
1/2" |
12 |
SPECIFICATIONS:
Weathershed
Material: EPDM Rubber
Fittings:
High Strength Aluminum Alloy
Rod:
Fiberglass with Ultraviolet Protective Coating
Mounting
Bracket and Hardware: Steel galvanized
Conductor Range: 4 Sol. - 556 ACSR (.200" - .858")
|
CATALOGUE
NUMBER |
VOLTAGE
CLASS |
A |
B |
C |
D |
|
EHISO-2-1808 |
|
18" |
|
|
3
5/8" |
|
EHISO-2-2408 |
8KV |
24" |
2 |
9" |
9
5/8" |
|
EHISO-2-3008 |
|
30" |
|
|
15
5/8" |
|
EHISO-2-1815 |
|
18" |
|
|
2
1/4" |
|
EHISO-2-2415 |
15KV |
24" |
3 |
10
1/2" |
8
1/4" |
|
EHISO-2-3015 |
|
30" |
|
|
14
1/4" |
|
EHISO-2-3615 |
|
30" |
|
|
20
1/4" |
|
EHISO-2-2428 |
|
24" |
|
|
5
1/4" |
|
EHISO-2-3028 |
28KV |
30" |
5 |
13
1/2" |
11
1/4" |
|
EHISO-2-3608 |
|
36" |
|
|
17
1/4" |
|
EHISO-2-2435 |
|
24" |
|
|
3
5/8" |
|
EHISO-2-3035 |
35KV |
30" |
6 |
15" |
9
5/8" |
|
EHISO-2-3635 |
|
36" |
|
|
15
5/8" |
|
EHISO-2-4235 |
|
42" |
|
|
21
5/8" |
|
EHISO-2-3046 |
|
30" |
|
|
5
1/4" |
|
EHISO-2-3646 |
46KV |
36" |
9 |
19
1/2" |
11
1/4" |
|
EHISO-2-4246 |
|
42" |
|
|
17
1/4" |
