BALL SOCKET TONGUE

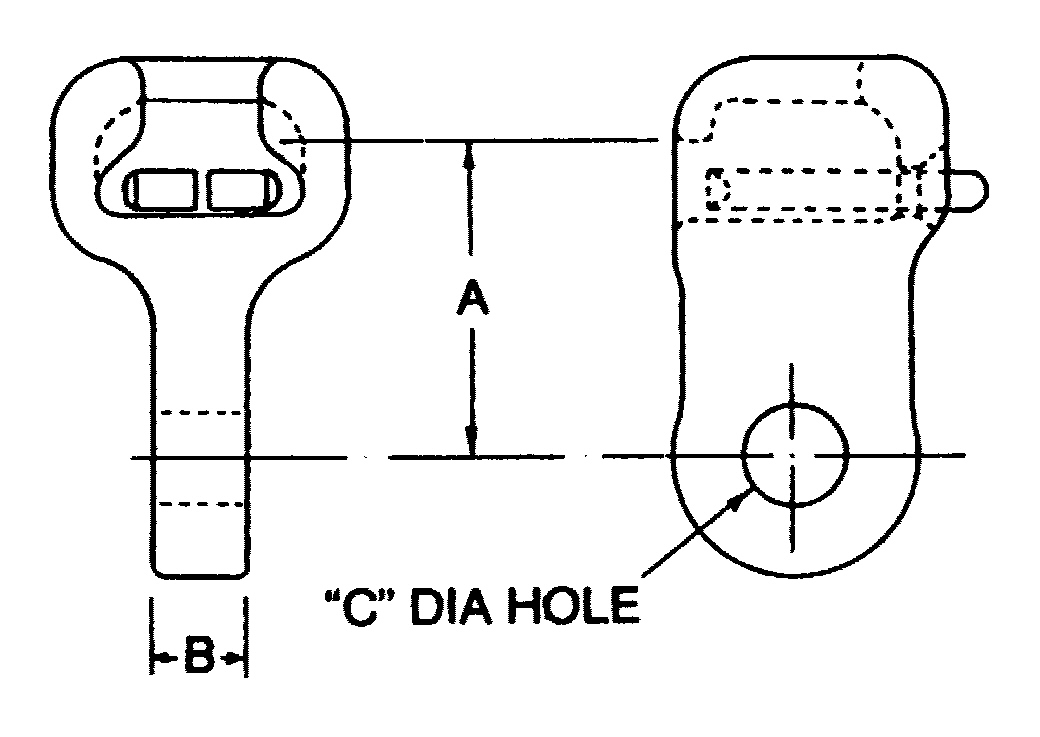

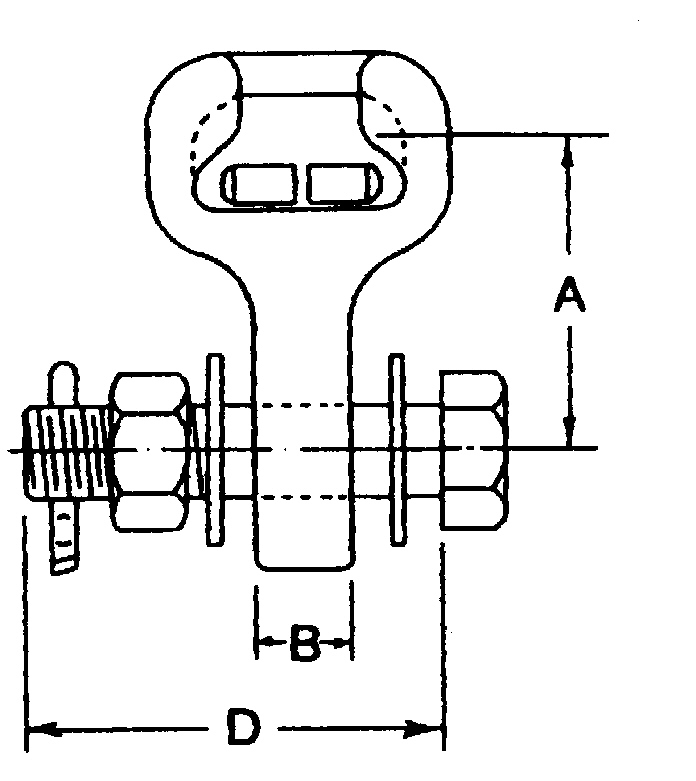

FIG. 1 FIG. 2
Material
is malleable iron, hot dip galvanized.
Ultimate tensile strength is 20,000lbs.
|
CATALOGUE |
FIG. |
DIMENSION
IN INCHES |
|||
|
NUMBER |
NO. |
A |
B |
C |
D |
|
ST-1025 |
1 |
1
1/4" |
5/8" |
11/16" |
OMIT |
|
ST-1025-1 |
1 |
2
1/4" |
5/8" |
13/16" |
OMIT |
|
ST-1025-CB |
2 |
2
1/4" |
5/8" |
11/16" |
2
3/4" |
