Bronze Parallel Connector

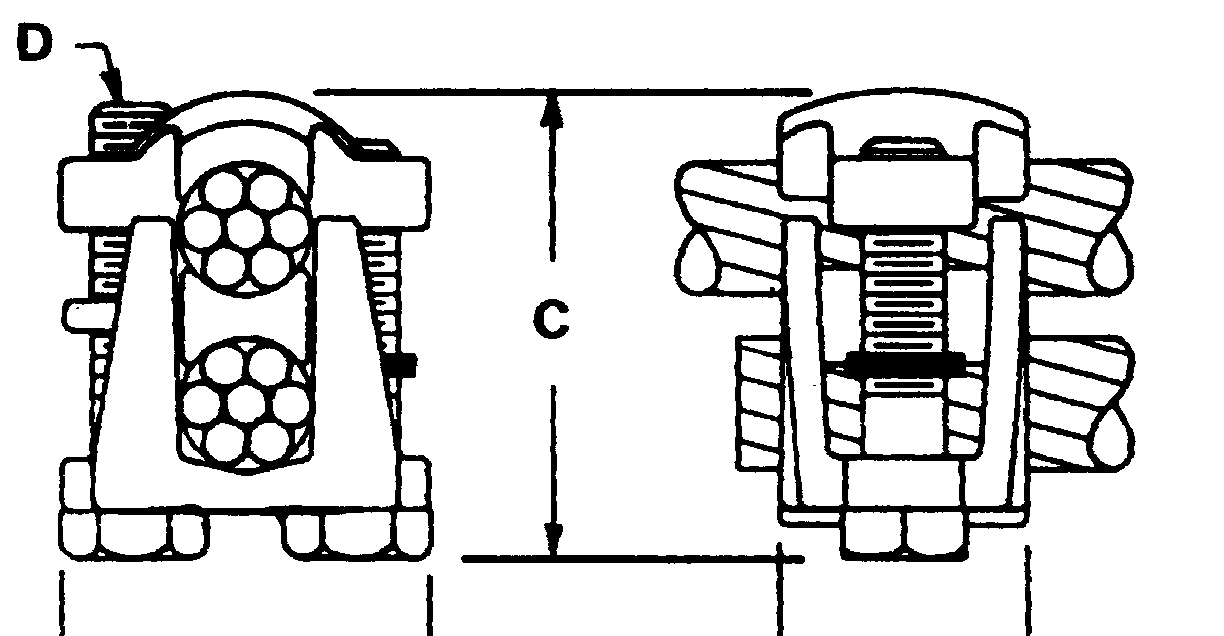

Connectors are two bolt type, one-piece swing-away design with conductor spacer. Castings are made from high conductivity bronze. bolts are high strength silicone bronze. Retaining ring is neoprene rubber.
Type KR series connectors are for use with copper conductors only.
PLAIN -FOR COPPER
|
CATALOGUE |
CABLE
RANGE |
DIMENSIONS
INCHES |
||||||||
|
NUMBERS |
MIN |
MAIN |
MAX |
MIN |
TAP |
MAX |
A |
B |
C |
D |
|
KR-5 |
3/0
STR. |
- |
500
MCM. |
No.
4 STR. |
- |
500
MCM. |
1
1/2 |
2
1/4 |
2
11/16 |
1/2 |
|
|
(.464 |
- |
.811) |
(.232 |
- |
.811) |
|
|
|
|
|
CATALOGUE |
CABLE
RANGE |
DIMENSIONS
INCHES |
||||||||
|
NUMBERS |
MIN |
MAIN |
MAX |
MIN |
TAP |
MAX |
A |
B |
C |
D |
|
KR-5GP |
2/0
ACSR |
- |
397.5
ACRS |
4
ACRS |
- |
397.5
ACRS |
1
1/2 |
2
1/4 |
2
11/16 |
1/2 |
|
|
(.447 |
- |
.743) |
(.250 |
- |
.743) |
|
|
|
|
