Deadend Strain Clamps
FEATURES
Waved
seat clamp for extra high holding power that exceeds requirements without
damaging the cable.
Conductor
can be threaded through clamp without removing saddle.
Lifting
eye supplied on all sizes to facilitate hot line work.
Hardware is galvanized steel, cotter pin is stainless steel.
ALUMINUM - TYPE ASC
|
CATALOGUE |
CABLE
RANGE |
INCHES |

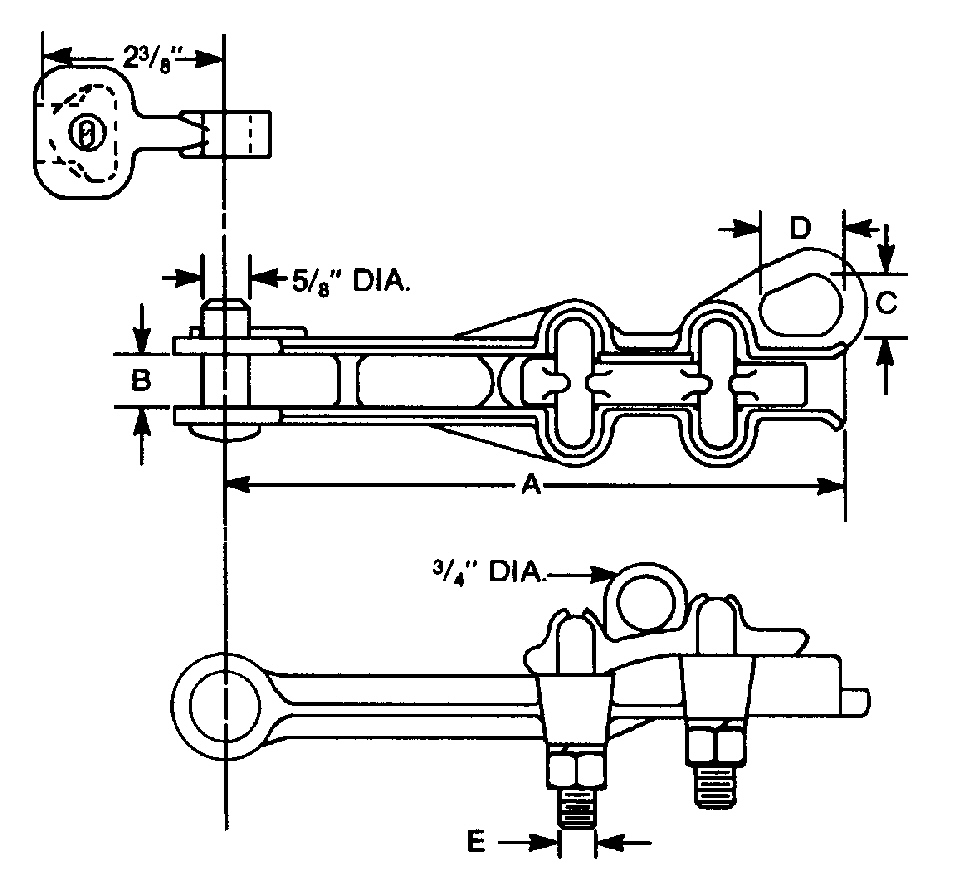

DIMENSIONS
IN INCHES |
ULTIMATE
STRENGTH (lb.) |
||||||||
|
NUMBER |
MIN. |
|
MAX. |
MIN |
MAX |
A |
B |
C |
D |
E |
BODY |
EYE |
|
ASC-50 |
No.
6 STR. |
- |
3/0
STR. ALUM |
.18 |
.50 |
7
3/8 |
7/8 |
1 |
1
1/4 |
1/2 |
8000 |
4000 |
|
ASC-62 |
No.
2 STR. |
- |
300
MCM STR. |
.30 |
.63 |
8
15/16 |
7/8 |
1 |
1
3/8 |
1/2 |
900 |
5000 |
|
ASC-93 |
3/0
STR. |
- |
556.5
MCM STR. |
.46 |
.93 |
9
5/8 |
7/8 |
1 |
1
3/8 |
1/2 |
900 |
5000 |
|
ASC-156 |
477
MCM STR. |
- |
1800
MCM STR. |
.79 |
1.56 |
14 |
7/8 |
1 |
1
3/8 |
5/8 |
12000 |
8000 |
IRON - TYPE MSC
Hot Dip Galvanized
|
CATALOGUE |
CABLE
RANGE |
INCHES |
DIMENSIONS
IN INCHES |
ULTIMATE
STRENGTH (lb.) |
||||||||
|
NUMBER |
MIN. |
|
MAX. |
MIN |
MAX |
A |
B |
C |
D |
E |
BODY |
EYE |
|
MSC-50 |
No.
6 STR |
- |
3/0
STR |
.18 |
.50 |
7
3/8 |
3/4 |
7/8 |
1
1/4 |
1/2 |
7000 |
4000 |
|
MSC-62 |
No.
2 STR. |
- |
300
MCM STR. |
.30 |
.63 |
8
3/4 |
3/4 |
7/8 |
1
1/4 |
1/2 |
8000 |
5000 |
|
MSC-93 |
3/0
STR. |
- |
556.5
MCM STR. |
.46 |
.93 |
10
1/4 |
7/8 |
1 |
1
1/4 |
1/2 |
9000 |
5000 |
