Non Fused Type
|
CATALOGUE NO. |
REMARKS |
|
811-21 |
With Mtg. Bracket |
|
811-22 |
Less Mtg. Bracket |

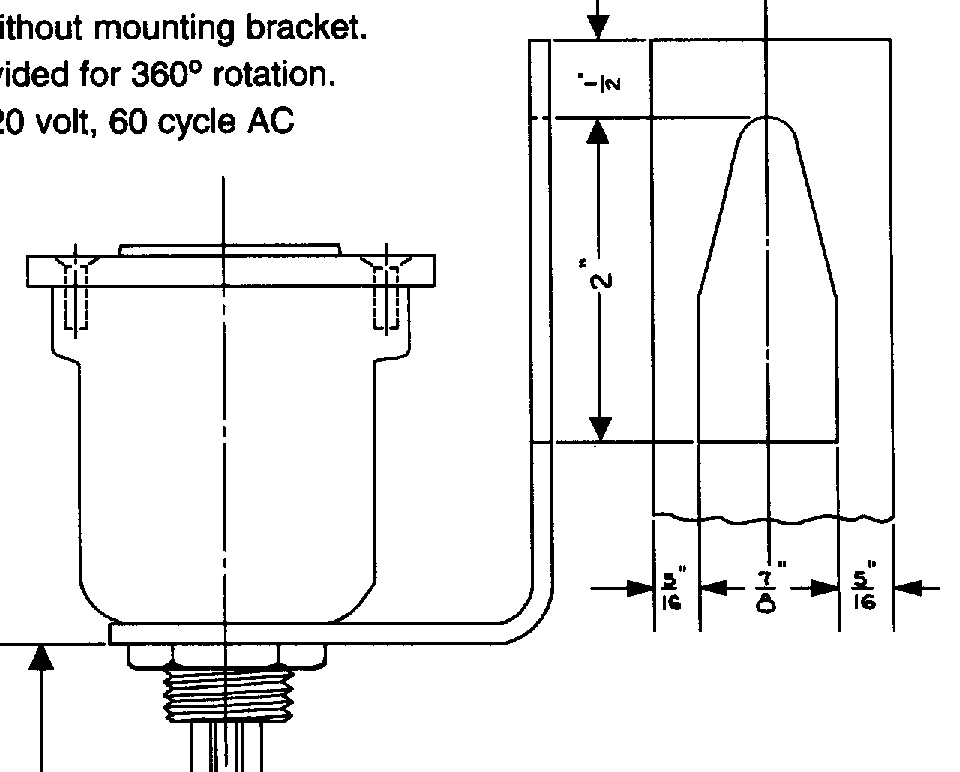

EPAC Non Fused Mounting Adaptor features:
-
Non Fused: for pole, crossarm, pipe and conduit mounting.
-
Rugged cast aluminum housing; plug in twistlock receptacle.
-
Unit available with or without mounting bracket.
-
Orientation: facility provided for 360° rotation.
-
Twistlock operation: 120 volt, 60 cycle AC
Fused type
|
CATALOGUE NO. |
REMARKS |
|
811-12 |
18" Leads (Standard) |
|
811-120H |
30" Leads (Special) |
EPAC Fused Type features:
-
EPAC Mounting Adaptor: for pole, crossarm, pipe andconduit mounting.
-
Rugged non ferrous aluminum housing; plug in twistlock receptacles for mounting.
-
Orientation: facility provided for 360° rotation.
-
Twistlock operation: 120 volt, 60 cycle A.C.,
-
Load rating 15 amps
-
Fuses: 15 amp standard; others available upon request.
