High Pressure Sodium 120 Volt
|
|
CATALOGUE
NUMBER |
|||||
|
WATTAGE |
LESS
P/C ADAPTOR |
WITH
P/C ADAPTOR |
||||
|
|
TYPE
II |
TYPE
III |
TYPE
V |
TYPE
II |
TYPE
III |
TYPE
V |
|
70 |
82-225-2 |
82-225-3 |
82-225-5 |
82-225-26 |
82-225-36 |
82-225-56 |
|
100 |
82-226-2 |
82-226-3 |
82-226-5 |
82-226-26 |
82-226-36 |
82-226-56 |
|
150 |
82-227-2 |
82-227-3 |
82-227-5 |
82-227-26 |
82-227-36 |
82-227-56 |
|
200 |
82-229-2 |
82-229-3 |
82-229-5 |
82-229-26 |
82-229-36 |
82-229-56 |

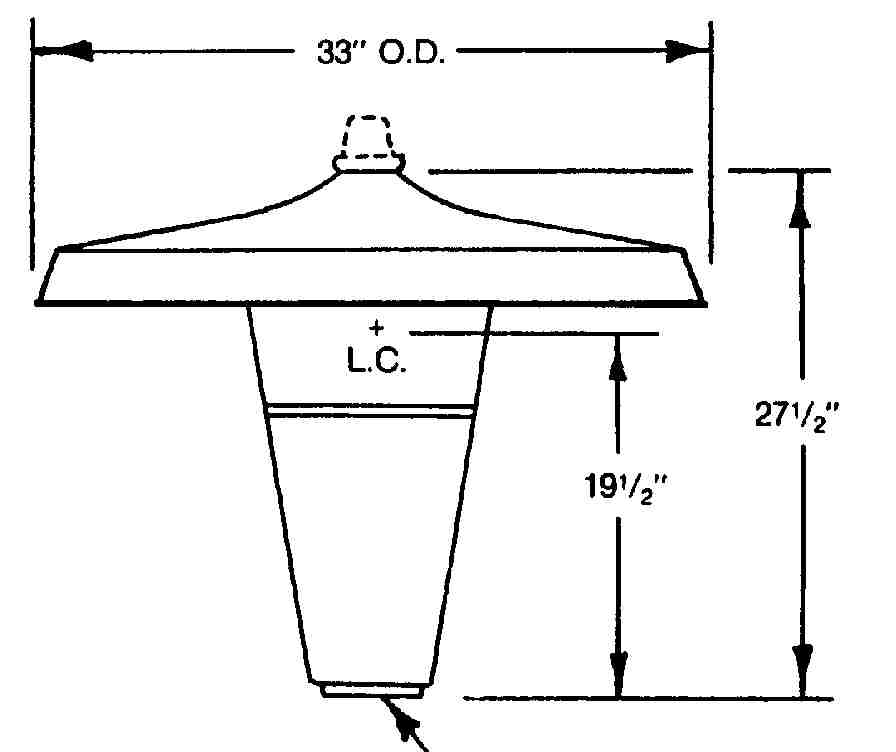

The type 220 Pole Top
Luninaire is a contemporary design for use in urban streetlighting -
parks, malls, and area lighting. The
luminaire is constructed of aluminum spinnings and castings. All
spinnings are anodized to maintain the
original finish for the life of the luminaire. The top is
additionally chemically brightened to maintain its reflective qualities.
The top assembly is attached
by four captive wing screws and is removable for lamp installation.
Lamp sockets - mogul porcelain
shrouded with brass nickel plated shells for easy lamp replacement.
Refractors - acrylic refractors are standard.
Vandal resistant U.V. stabilized Lexan refractors are available on request. Add suffix "U" to catalogue number.
